Transformers

Many years ago I salvaged a burner transformer from an industrial burner, finally i've found a use for it other than a jacobs ladder.
Specs:
Primary 240 V 0.9 A
Secondary 11000 V 0.018 A
Secondary is centre tapped to earth.

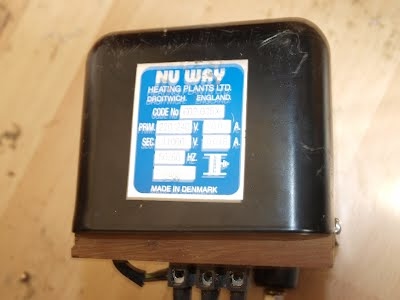

The rating plate

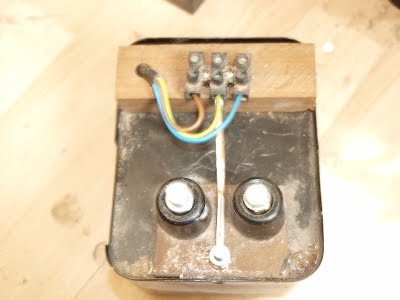

As can be seen on this image, i've added a wood block for the mains connections, and an earth bar with a connection bolt, the 2 HV terminals have been drilled and tapped for 2 more bolts.

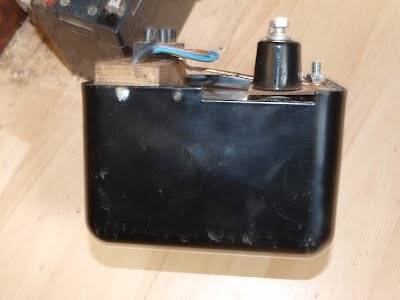

Side view showing bolts

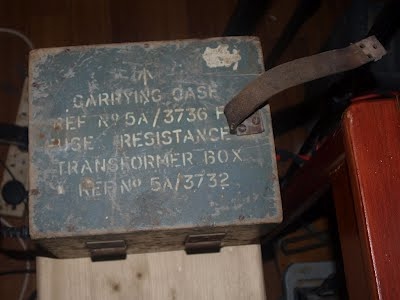

Outside the box

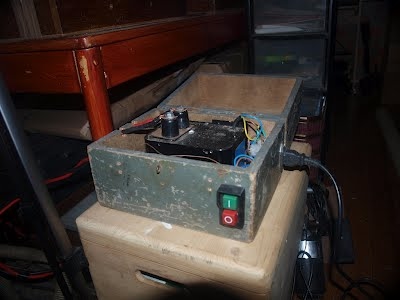

The transformer fitted in the box, you can see the mains input on the side, the start/stop on the front, and the output terminals with wires attached

Update

I now have 2 NST's, you can see them in the Powerwall page
